LED Parameters

Color

 Type

Wavelength(nm)

Brightness(mcd)

Horizontal/Vertical Viewing Angle

1

Red

3528 series,SMD 3in1

624

200-350

120⁰/120⁰

2

Green

530

500-750

120⁰/120⁰

3

Blue

470

130-180

120⁰/120⁰

4

Size L*W*H=3.5*2.8*1.0mm

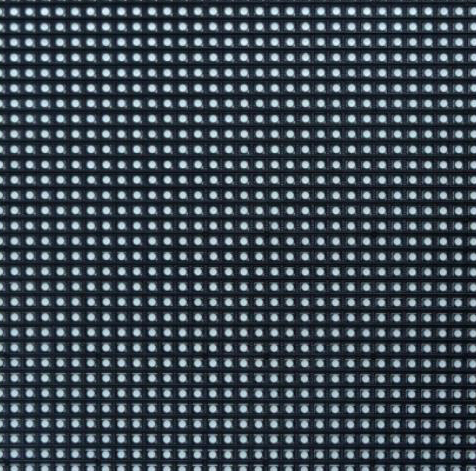

Pixel

1

Pixel Pitch

6mm

2

Pixel Configuration

1R1G1B

3

Pixel Density

27777dots/ m²

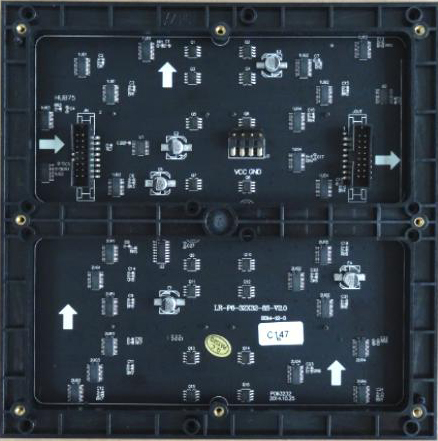

Module(W*H*D)

1

Module Size（mm）

192(W)*192(H)*15(D)

2

Module resolution

32 *32dots

3

White balance color temperature

3200-12000K(Adjustable)

4

Cabinet and System

1

Cabinet Size（mm）

576(W)*576(H)

2

Cabinet Resolution(W*H)

96*96

3

Brightness

＞1100cd/ m²

4

Contrast

＞2000：1

5

Color Temperature

3200~12000K(Adjustable)

6

Horizontal Viewing Angle

160⁰

7

Vertical Viewing Angle

120⁰

8

Maxium Power Consumption

500W/ m²

9

Average Power Consumption

200W/ m²

10

Optimal Viewing Distance

6-60m

11

Out-of-control Rate

≤3/10000

12

Color

16777216

13

Grey Scale

16384

14

Brightness Control

100 levels can be continuously adjusted by automatic or manual

15

Brightness Variance Ratio

＜5%

16

Frame Frequency

＞60-85Hz

17

Scanning Frequency

≥1800Hz，which are subjected to receiving card

18

Scanning Method

1/16 Scanning

19

Driving Method

Constant Current Drive

20

Screen Natural Temperature

≤20⁰

21

Anti-Y Correction

1.5~3.0 (Adjustable)

22

Control Mode

Synchronization

23

Power Supply Requirement

AC90V~220V,50Hz / 110V,60HZ

24

Life Span

100,000hours

25

White Balance Coordinate

X:Y=0.27:0.29

26

Video Input Signals

RGBHV.YC.CVBS.GBR.YpbP.VGA.DVI.HDMI

27

Communication distance

Twisted-pair 100m，multimode fiber 500m, single-mode fiber 15Km.

28

Control Interface

DVI，USB，RJ45 standard interface. Module interface is HUB75

29

Software Interface

Standard network interface, WINDOWS system

30

Pixel out-of-control rate

＜1/10000

31

Screen level up degree

＜1mm

32

Operating Temperature

-30⁰～+60⁰

33

Operating Humidity

10%--95%RH

34

Screen Protection

Dustproof, anti-static, mouldproof

35

Power Protection

Over temperature protection, overcurrent protection, overvoltage protection, etc.

36

Uniformity of scale

Neighbor pixels :≤5%; Neighbor modules :≤3%

37

Screen Precision

Module flatness＜1.5mm  Patchwork＜1mm
